Rubber bumper

Too many results? Please filter your selection list according to your needs.

Nominal size

Your selection

remove selection
M10
M12
M16
M20

Panel hole size

Your selection

remove selection
10,5
12,5
16,5
20,5

Panel thickness

Your selection

remove selection
1 - 3,0

Total Ø

Your selection

remove selection
15,0
18,0
22,0
26,0

Hole Ø

Your selection

remove selection
7,0
9,0
12,2
15,2

Total height

Your selection

remove selection
13,0
15,0
17,0
19,0

Productfilter

previous next

EPDM-Material

uv and ozone resistant
chemicals resistent
temperature range -40°C...+130°C

General measuring tolerances (DIN ISO 3302, section 2 M2F)

All Measurements in millimeters (mm)

Errors excepted

Download the datasheeht as PDF

Article
No.

Nominal
size

Hole Ø

Panel
thickness

Collar height

Total Ø

Hole Ø

Total
height

Material /
Color

Select
sample

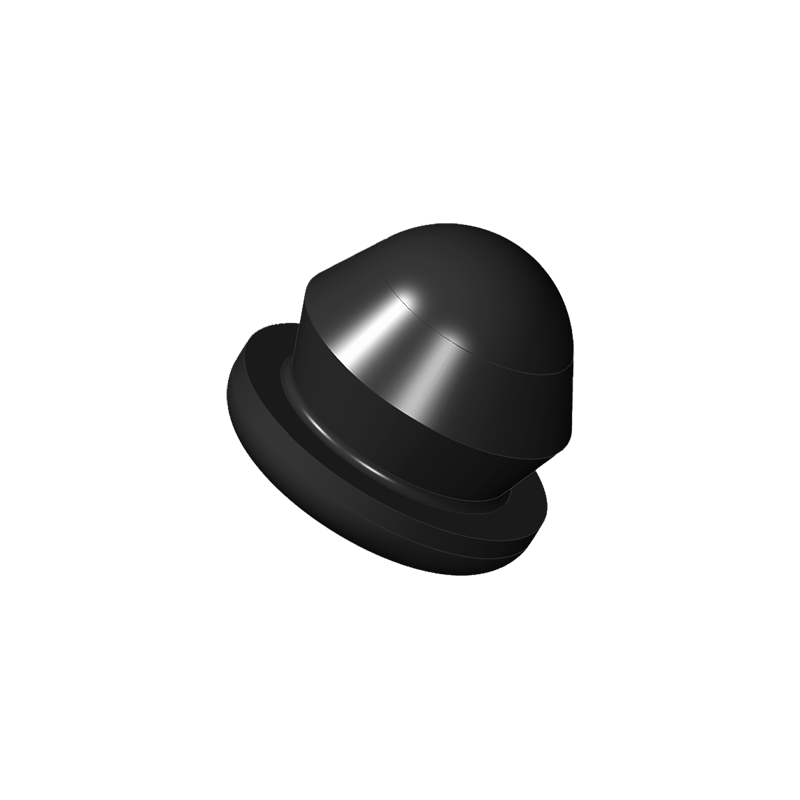

3550

M10

10,5

1 - 3,0

3,0

15,0

7,0

13,0

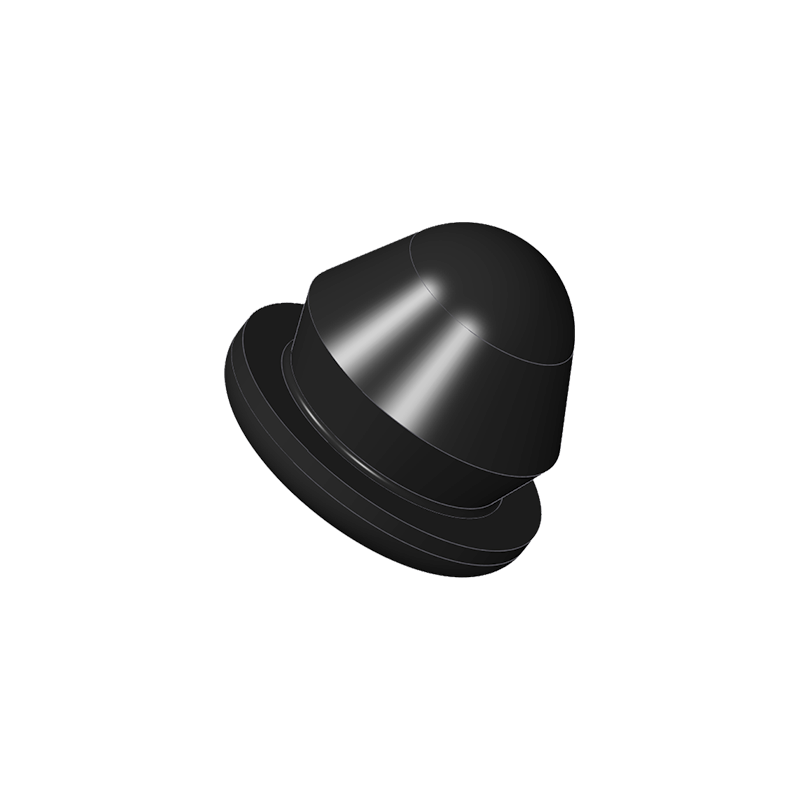

3551

M12

12,5

1 - 3,0

3,0

18,0

9,0

15,0

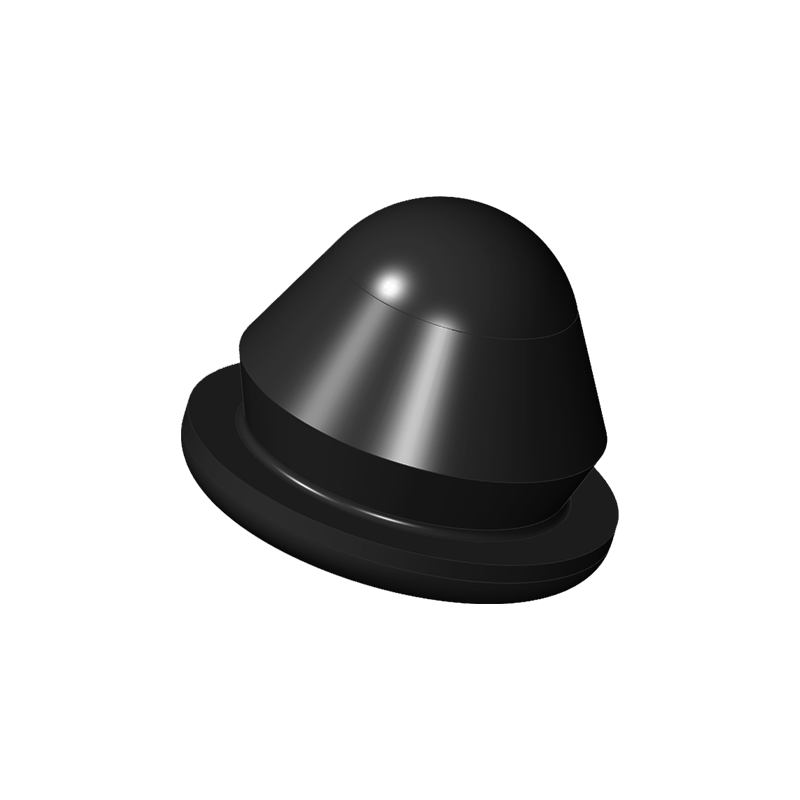

3552

M16

16,5

1 - 3,0

3,0

22,0

12,2

17,0

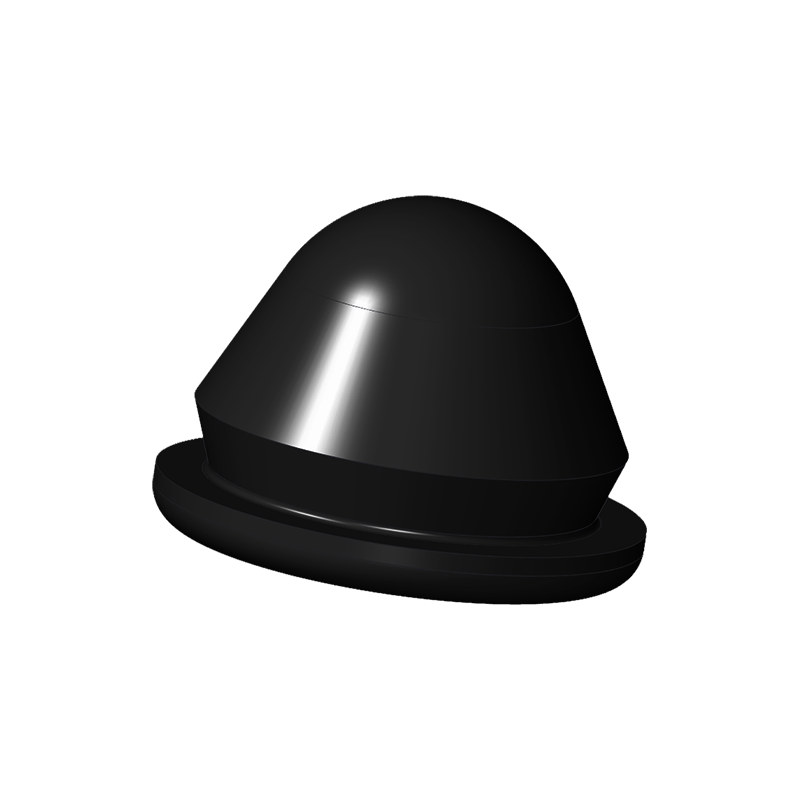

3553

M20

20,5

1 - 3,0

3,0

26,0

15,2

19,0

EB = EPDM, black
