Cable grommets sepcial form A

Too many results? Please filter your selection list according to your needs.

Total Ø

Your selection

remove selection
19,7
24,5

Hole Ø

Your selection

remove selection
15,0
19,0
19,8

Inner Ø

Your selection

remove selection
11,6
14,5

Ø4

Your selection

remove selection
6,5
8,8
9,0

Total height

Your selection

remove selection
10,0
14,5

Gap

Your selection

remove selection
2,0
2,5
3,5

Productfilter

previous next

EPDM-Material

uv and ozone resistant
chemicals resistent
temperature range -40°C...+130°C

General measuring tolerances (DIN ISO 3302, section 2 M2F)

All Measurements in millimeters (mm)

Errors excepted

Download the datasheeht as PDF

Article
No.

Total Ø

Hole Ø

Inner Ø

Total
height

Gap

Material /
Color

Select
sample

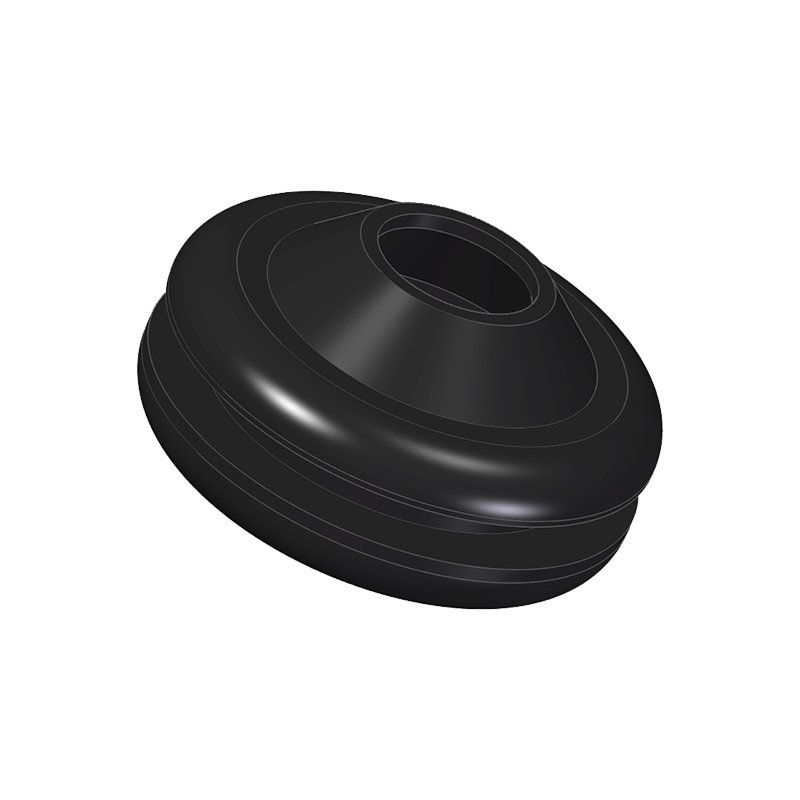

1020

19,7

15,0

11,6

6,5

10,0

2,0

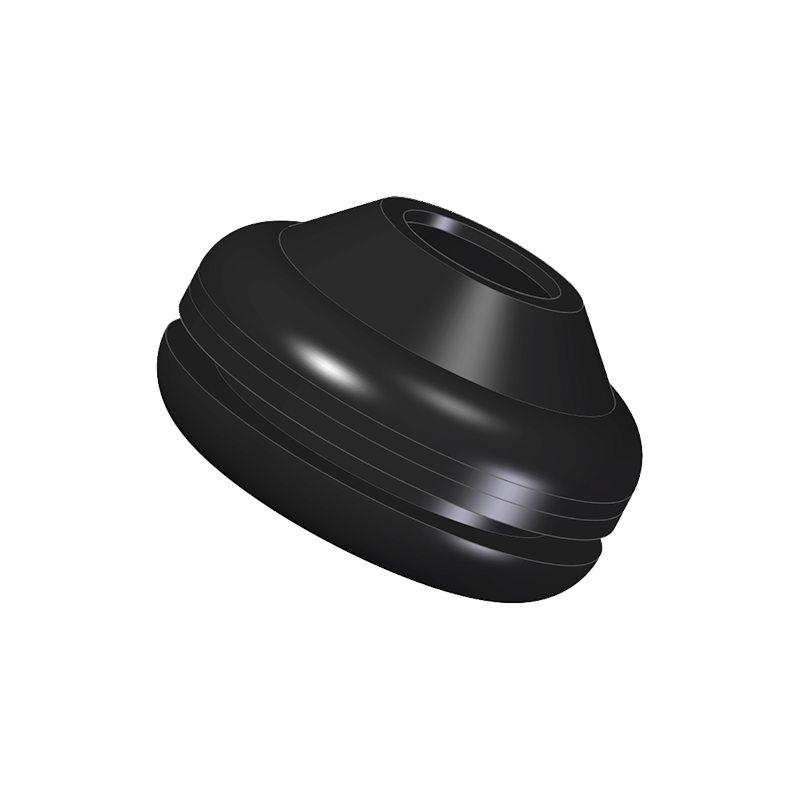

1029

24,5

19,0

14,5

9,0

14,5

2,5

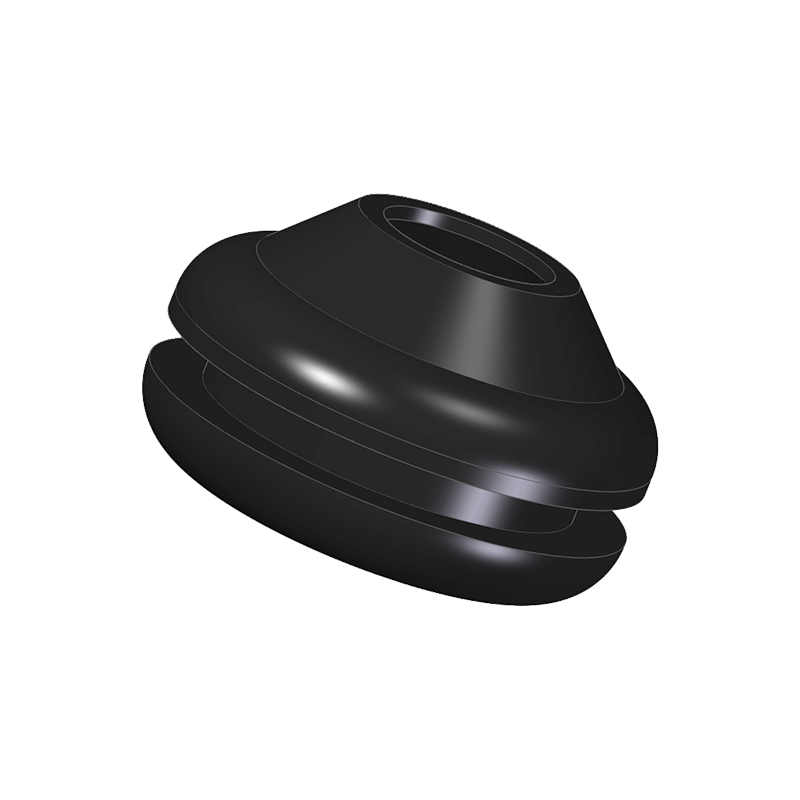

1030

24,5

19,8

14,5

8,8

14,5

3,5

EB = EPDM, black
